PTFE Resin Molded Sheet

Kaxite Sealing's PTFE Resin Molded Sheet offers superior durability and chemical resistance, ideal for industrial sealing solutions. This high-performance sheet provides reliable performance in demanding applications, ensuring long-lasting protection and efficiency. Experience enhanced sealing with our advanced PTFE technology, designed to meet rigorous standards and deliver exceptional value.

Send Inquiry

Product Description

With professional PTFE Resin Molded Sheet factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Resin Molded Sheet manufacturers and suppliers.

[ Features ]

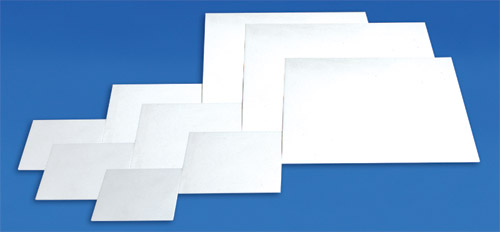

PTFE molded sheet is manufactured by molding method with PTFE granular resin.
PTFE is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.

[ Specifications ]

Length(mm)×Width(mm)	Thickness(mm)
Length(mm)×Width(mm)	Nominal	Tolerance
150×150	1.0-30	±0.30-±0.50
250×250	1.5-30	±0.30-±0.50
300×300	1.5-30	±0.30-±0.50
450×450	1.5-30	±0.30-±0.50
600×600	2-30	±0.30-±0.50
800×800	3-30	±0.30-±0.50
1000×1000	3-30	±0.30-±0.50
1200×1200	3-30	±0.30-±0.50
1000×2000	5-35	±0.30-±0.60
1500×1500	5-30	±0.30-±0.50
1800×1800	8-30	±0.30-±0.50
2000×2000	8-30	±0.30-±0.50

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.30
Tensile strength (min)	MPa	15.0
Ultimate elongation (min)	%	150
Dielectric strength(min)	KV/mm	10

[ Applications ]

Lining Bearing pads, seals, and electrical insulation.
