In the demanding world of industrial sealing, finding a material that offers reliability, longevity, and performance across extreme conditions is paramount. For over two decades, Kaxite Sealing has been at the forefront of this challenge, engineering sealing solutions that set the industry standard. Among our core specialties is high-performance graphite packing, a versatile and robust material designed to handle the most severe service environments. This comprehensive guide delves into the technical specifications, applications, and advantages of graphite packing, providing the detailed insight necessary for specifying the correct sealing component for your operation.

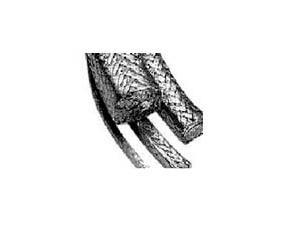

Graphite packing, also known as graphite filament packing or flexible graphite packing, is manufactured from pure, exfoliated graphite ribbons. This structure creates a material with exceptional natural lubricity, high thermal conductivity, and outstanding chemical resistance. Unlike traditional packing materials, graphite maintains its integrity and sealing force from cryogenic temperatures up to intense heat, all while exhibiting minimal friction on the shaft or stem. This combination of properties makes it an indispensable solution for sealing pumps, valves, agitators, and other rotary or reciprocating equipment in critical industries.
Kaxite Sealing offers a range of graphite packing styles to meet specific application requirements. Below are the detailed parameters for our standard high-purity flexible graphite packing, Style GF-1000.
| Parameter | Specification / Value | Test Standard |
|---|---|---|
| Material Composition | ≥ 99% Pure Exfoliated Graphite, Reinforced with Inconel 600 Wire (Optional) | ASTM D5291 |
| Temperature Range | -240°C to 650°C (Oxidizing); Up to 3000°C (Inert/Reducing) | ASTM E831 |
| pH Range | 0 - 14 (Full acidic/alkaline spectrum) | - |
| Density (Typical) | 1.1 - 1.6 g/cm³ (Adjustable based on gland load) | ASTM D3800 |
| Tensile Strength | ≥ 6.0 MPa (Longitudinal) | ASTM D828 |
| Compression Recovery | ≥ 40% (after 70 MPa load) | ASTM F36 |
| Thermal Conductivity | 10 - 150 W/m·K (in plane, varies with density) | ASTM E1461 |
| Emissivity | 0.8 - 0.9 | ASTM E408 |
| Ash Content | ≤ 1.0% | ASTM D5617 |
| Sulfur Content | ≤ 500 ppm | ASTM D4239 |
| Available Sizes (Square Cross-Section) | 3mm, 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1" | - |
To address diverse operational needs, Kaxite Sealing provides specialized graphite packing configurations:
Q: What are the primary applications for graphite packing?
A: Graphite packing is exceptionally versatile. Its primary applications include sealing centrifugal and rotary pumps, mixers and agitators, gate/globe/control valves, expansion joints, and flanges. It is extensively used in industries such as chemical processing, petrochemical and refining, power generation (including nuclear), pulp and paper, pharmaceuticals, and high-temperature heat treating due to its stability across extreme conditions.
Q: How does graphite packing compare to traditional asbestos or PTFE-based packings?
A: Graphite packing significantly outperforms asbestos (now largely obsolete) and standard PTFE packings in high-temperature applications. While PTFE is limited to about 260°C (500°F), graphite functions seamlessly up to 650°C (1200°F). Graphite also offers superior thermal conductivity, which PTFE lacks, preventing stuffing box overheating. Compared to aramid or other synthetic fibers, graphite provides better chemical resistance and inherent lubrication, leading to longer life and less shaft wear.
Q: Can graphite packing be used on potable water or food-grade applications?
A: Standard high-purity graphite packing from Kaxite Sealing is manufactured from 99%+ pure graphite, which is inherently inert and non-toxic. For potable water or food contact applications certified to NSF/ANSI 61 or FDA standards, we offer specific grades (like our GF-1000-FG) that are produced under controlled conditions with certified raw materials and no additives, ensuring full compliance with health and safety regulations.
Q: Is graphite packing suitable for high-speed rotary equipment?
A: Yes, but with proper selection and installation. For high-speed pumps, our reinforced grades (GF-2000 or GF-4000) are recommended as they offer greater structural integrity and resistance to extrusion. Correct gland adjustment is critical; the packing should be tightened just enough to allow a slight leakage for lubrication and cooling during the initial run-in period, then adjusted to the recommended leak rate. The self-lubricating nature of graphite minimizes heat generation at high speeds.
Q: How do I properly install graphite packing to ensure optimal performance?
A: Proper installation is key. First, ensure the shaft/stem and stuffing box are clean, smooth, and free of defects. Always use rings cut precisely on a mandrel—never wrap the coil around the shaft. Stagger the ring joints by 90 degrees. For pure graphite packing, tighten the gland follower hand-tight initially. After starting the equipment, allow a brief run-in period with slight leakage, then gradually tighten the gland nuts in 1/6-turn increments until the desired controlled leakage (typically a few drops per minute) is achieved. Avoid over-tightening, as graphite is soft and can be damaged by excessive pressure.
Q: Does graphite packing require a break-in period?
A: Yes, a controlled break-in period is essential for pure and reinforced graphite packing. This allows the graphite to thermally condition and conform perfectly to the micro-imperfections of the shaft and stuffing box. Start the equipment with the gland nuts finger-tight. After reaching operating temperature, gradually tighten the gland in small increments over several hours or as per the equipment manual until the leakage is minimized to an acceptable, steady rate. This process maximizes packing life and sealing efficiency.
Q: What chemicals or media is graphite packing NOT compatible with?
A: While graphite has exceptional chemical resistance, it has two primary vulnerabilities. First, in strongly oxidizing environments at high temperatures (e.g., concentrated nitric acid, hot sulfuric acid, chlorates), graphite can slowly oxidize. Second, in the presence of highly oxidizing agents in liquid or gas form at elevated temperatures, accelerated oxidation can occur. For such services, consulting with Kaxite Sealing engineers is crucial. We may recommend specialized grades or alternative materials like PTFE or Grafoil® treated for such conditions.
Q: How do I select the correct size and style of graphite packing for my application?
A: Selection depends on multiple factors: equipment type (pump, valve), shaft/stem diameter, operating speed (RPM), pressure, temperature, and the chemical nature of the media. The packing cross-section should generally be 1/8th of the stuffing box depth or the clearance between the shaft and box wall. For high-pressure service, choose a denser packing or a reinforced style. For high-temperature valve stems, reinforced or die-formed rings are optimal. The engineering team at Kaxite Sealing provides free technical support to analyze your application and recommend the precise product.
