In the demanding world of industrial sealing, selecting the right packing material is critical for efficiency, safety, and cost-effectiveness. Among the myriad of options available, PTFE-based packings stand out for their exceptional performance across a wide range of applications. This guide delves deep into the specifics of PTFE Packing, offering detailed technical insights to help engineers, maintenance professionals, and procurement specialists make informed decisions.
PTFE Packing, or Polytetrafluoroethylene packing, is a type of mechanical seal used to prevent leakage of fluids (liquids or gases) from equipment like pumps, valves, and mixers. Its primary component, PTFE, is a high-performance synthetic fluoropolymer renowned for its remarkable chemical inertness, extremely low coefficient of friction, and ability to withstand extreme temperatures. Unlike traditional packings, PTFE versions offer superior reliability with minimal shaft wear, making them ideal for applications involving corrosive chemicals, ultra-pure media, or where contamination must be avoided.
The adoption of PTFE Packing brings numerous operational benefits. Its non-stick nature ensures easy installation and removal, while its self-lubricating property reduces the need for external lubrication systems. This packing is virtually universal in its chemical compatibility, resisting attack from nearly all industrial chemicals and solvents. Common applications include:

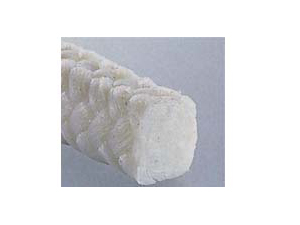

At Kaxite Sealing, we engineer our PTFE Packing to meet the highest standards of performance and durability. Our products are available in various styles—such as braided, filament, tape, and die-molded rings—to suit specific application requirements. Below are the critical parameters that define our packing solutions.
| Parameter | Standard Braided PTFE | PTFE with Graphite Fill | PTFE with Carbon Fill | Virgin PTFE Filament |
|---|---|---|---|---|
| Primary Use | General chemical service, valves | Hot water, steam, mild abrasives | Aggressive chemicals, high load | Ultra-pure or sensitive media |
| Max. Shaft Speed (m/s) | 15 | 12 | 10 | 20 |
| Pressure (psi) | Up to 1500 | Up to 2000 | Up to 2500 | Up to 1000 |
| Coefficient of Friction | 0.05 - 0.08 | 0.04 - 0.06 | 0.05 - 0.07 | 0.02 - 0.04 |
| Thermal Conductivity (W/m·K) | 0.25 | 5 - 10 | 1 - 3 | 0.24 |
| Kaxite Sealing Product Code | KX-PTFE-B | KX-PTFE-G | KX-PTFE-C | KX-PTFE-VF |
Q: How does PTFE Packing compare to traditional asbestos or graphite packings?
A: PTFE Packing offers significant advantages. It is chemically inert, unlike graphite which can be oxidized by strong oxidizers. It is non-toxic and safe to handle, unlike asbestos. PTFE provides a lower coefficient of friction, reducing power consumption and shaft wear. It also requires less maintenance adjustment and is suitable for a much broader range of chemicals. For most modern applications, PTFE is the superior, safer, and more cost-effective long-term choice.
Q: Can Kaxite Sealing PTFE Packing be used in high-speed rotary equipment?
A: Yes, but selection is crucial. Our virgin PTFE filament packing (KX-PTFE-VF) is specifically designed for high-speed service, capable of handling shaft speeds up to 20 m/s. It has excellent heat dissipation and maintains integrity under centrifugal forces. For standard braided PTFE, we recommend a maximum of 15 m/s. Always consult our technical datasheets or engineering team for application-specific recommendations to ensure optimal performance and seal life.
Q: What is the correct installation procedure for PTFE braided packing?
A: Proper installation is key to performance. Clean the stuffing box thoroughly. Wrap the packing snugly around the shaft to measure and cut rings at a precise 90-degree angle using a sharp blade. Stagger the joints by 90 degrees for each ring. Insert rings one at a time, using a tamping tool to seat each firmly. For most applications, tighten the gland finger-tight only, then start the equipment. After a short run-in period (15-30 minutes), tighten the gland incrementally—usually 1/4 to 1/2 turn—until leakage is reduced to a slight drip or film for lubrication. Over-tightening is a common cause of premature failure.
Q: Does PTFE Packing require a break-in period or external lubrication?
A: PTFE Packing is self-lubricating, so external lubrication systems are generally not required, which simplifies system design. A controlled break-in period is, however, highly recommended. This allows the packing to adjust to the operating temperature and the packing fibers to orient themselves, creating an effective seal. The gradual tightening procedure described above constitutes the break-in. For certain abrasive services, a compatible flush might be recommended to cool the packing and flush away particles.
Q: How do I select between virgin PTFE and filled PTFE packings?
A: The choice depends on the service conditions. Choose Virgin PTFE (like our KX-PTFE-VF) for applications involving ultra-pure or sensitive products (food, pharmaceuticals, semiconductors), highly aggressive oxidizers like chlorine or fuming nitric acid, or where maximum chemical purity is essential. Choose Filled PTFE (like our KX-PTFE-G or KX-PTFE-C) for services with higher pressures, temperatures, or where improved thermal conductivity is needed to dissipate frictional heat. Fillers like graphite improve creep resistance and handle hot water/steam better, while carbon fillers enhance wear resistance.
Q: What are the signs that my PTFE Packing needs to be replaced?
A: Monitor for these indicators: A significant increase in leakage beyond a controllable drip or film, even after gland adjustment. Excessive heat generation at the stuffing box, indicating friction and potential failure. Visible physical damage to the packing, such as hardening, cracking, or severe extrusion. A noticeable increase in power consumption or shaft drag. For critical equipment, implementing a preventive maintenance schedule based on historical performance data is more reliable than waiting for failure signs.
Q: Can Kaxite Sealing provide custom-engineered PTFE Packing solutions?
A: Absolutely. Kaxite Sealing specializes in developing custom sealing solutions. We can engineer packings with specific filler types and percentages, create unique braid patterns for enhanced density or flexibility, and manufacture die-molded rings to precise non-standard dimensions. We also offer custom colors for identification and can develop packing sets that combine different styles for multi-stage sealing challenges. Contact our engineering department with your application parameters for a tailored proposal.
